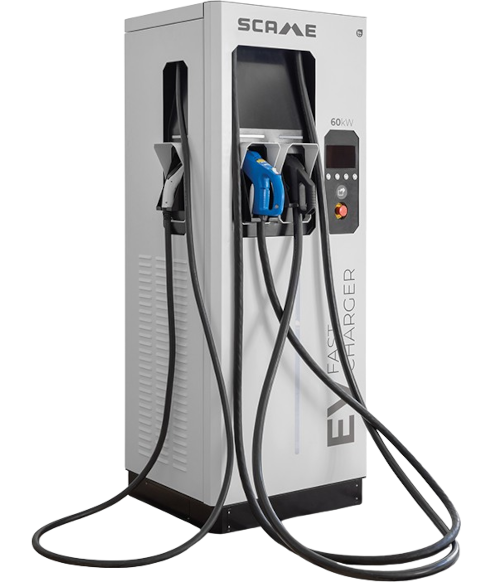

FLOOR STANDING FAST CHARGING STATIONS IN DC POWER FOR ELECTRIC CAR
BE-M DC Pillar
BE-M is a range of floor standing fast charging station in DC power,
with 60 - 90 - 120 - 150 - 180 kW powers.
re equipped, depending on the versions, with two cables with CCS2 and/or CHAdeMO connectors and a cable equipped with a Type 2 connector for AC charging.
with 60 - 90 - 120 - 150 - 180 kW powers.
re equipped, depending on the versions, with two cables with CCS2 and/or CHAdeMO connectors and a cable equipped with a Type 2 connector for AC charging.
Fast Charge
Safety and Reliability
Power output up to 180 kW
BE-M Modes
MODES
Operating modes
PERSONAL
PERSONAL Mode BE-M Pillar are suitable for installation in all places requiring controlled access insofar as use is not normally limited exclusively to the owners of the vehicle, but rather extends to a greater number of users, or in cases where access to the charging stations needs to be monitored and regulated.
PERSONAL mode charging stations can act as a Satellite in a Master/Satellite architecture.
PERSONAL mode charging stations can act as a Satellite in a Master/Satellite architecture.
Operating mode:
Personal (default) - Satellite (when connected in a Master-Satellite architecture)
BE-M Pillar
PERSONAL
BE-M is a Pillar range for charging electric car in fast DC power, in coates-steel, with powers of 60 - 90 - 120 - 150 - 180 kW.
Made of sturdy painted steel sheet, the BE-M Charging Stations are equipped, depending on the versions, with two cables with CCS2 and/or CHAdeMO connectors and a cable equipped with a Type 2 connector for AC AC charging.
PERSONAL Mode BE-M charging stations are ideal for installation in all places requiring controlled access insofar as use is not normally limited exclusively to the owners of the vehicle, but rather extends to a greater number of users, or in cases where access to the charging stations needs to be monitored and regulated.
PERSONAL Mode charging stations can act as a Satellite in a Master/Satellite architecture, where a Scame WEB/NET charging station works as "Master".
Operating mode:Free -Personal (default) - Satellite (when connected in a Master-Satellite architecture)
Embedded features: Management System (*) - Load Balancing (*) - OCPP 1.6JSON (*)
(*) only available when acting as Satellite in a Master-Satellite configuration in which the Master has activated these features. PERSONAL Mode BE-M charging stations are ideal for installation in all places requiring controlled access insofar as use is not normally limited exclusively to the owners of the vehicle… Leggi tutto +
Made of sturdy painted steel sheet, the BE-M Charging Stations are equipped, depending on the versions, with two cables with CCS2 and/or CHAdeMO connectors and a cable equipped with a Type 2 connector for AC AC charging.
PERSONAL Mode BE-M charging stations are ideal for installation in all places requiring controlled access insofar as use is not normally limited exclusively to the owners of the vehicle, but rather extends to a greater number of users, or in cases where access to the charging stations needs to be monitored and regulated.
PERSONAL Mode charging stations can act as a Satellite in a Master/Satellite architecture, where a Scame WEB/NET charging station works as "Master".
Operating mode:Free -Personal (default) - Satellite (when connected in a Master-Satellite architecture)
Embedded features: Management System (*) - Load Balancing (*) - OCPP 1.6JSON (*)
(*) only available when acting as Satellite in a Master-Satellite configuration in which the Master has activated these features. PERSONAL Mode BE-M charging stations are ideal for installation in all places requiring controlled access insofar as use is not normally limited exclusively to the owners of the vehicle… Leggi tutto +
Go to www.scame.com for more information about BE-M Pillar
WEB/NET
WEB/NET Mode BE-M Pillar are the ultimate choice in all those cases where the system must be monitored and managed remotely. All WEB/NET stations have embedded Scame’s proprietary Management System and can act as a Master in a Master/Satellite architecture.
A Master station can manage up to 16 charging points.
A Master station can manage up to 16 charging points.
Operating mode:
Web/Net (default) - Master (when connected in a Master-Satellite architecture)
BE-M Pillar
WEB/NET
BE-M is a Pillar range for charging electric car in fast DC power, in coates-steel, with powers of 60 - 90 - 120 - 150 - 180 kW.
Made of sturdy painted steel sheet, the BE-M Charging Stations are equipped, depending on the versions, with two cables with CCS2 and/or CHAdeMO connectors and a cable equipped with a Type 2 connector for AC AC charging.
WEB/NET Mode CB Pillar are the ultimate choice in all those cases where the system must be monitored and managed remotely. All WEB/NET stations have embedded Scame’s proprietary Management System and can act as a Master in a Master/Satellite architecture.
A Master station can manage up to 16 charging points.
Operating mode: Web/Net (default) - Master (when connected in a Master-Satellite architecture)
Embedded features: Management System - OCPP 1.6JSON
Optional features: Load Balancing (to to be activated during ordering phase via P/N 209.LB01) WEB/NET Mode BE-M Pillar are the ultimate choice in all those cases where the system must be monitored and managed remotely… Leggi tutto +
Made of sturdy painted steel sheet, the BE-M Charging Stations are equipped, depending on the versions, with two cables with CCS2 and/or CHAdeMO connectors and a cable equipped with a Type 2 connector for AC AC charging.
WEB/NET Mode CB Pillar are the ultimate choice in all those cases where the system must be monitored and managed remotely. All WEB/NET stations have embedded Scame’s proprietary Management System and can act as a Master in a Master/Satellite architecture.
A Master station can manage up to 16 charging points.
Operating mode: Web/Net (default) - Master (when connected in a Master-Satellite architecture)
Embedded features: Management System - OCPP 1.6JSON
Optional features: Load Balancing (to to be activated during ordering phase via P/N 209.LB01) WEB/NET Mode BE-M Pillar are the ultimate choice in all those cases where the system must be monitored and managed remotely… Leggi tutto +
Go to www.scame.com for more information about BE-M Pillar
Titolo
Why choose Scame DC Pillar
High Performance
Power output up to 180 kW
Advanced Technology
High quality and reliable products, solutions and components.
Customer Support
Telephone and direct assistance by qualified personnel.
Download Area | BE-M
Download Area
Technical Sheet | BE-M

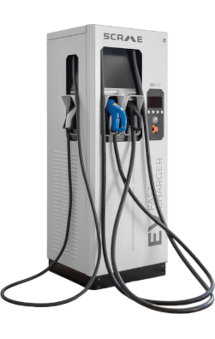

Pillar BE-M
Charging Station BE-M
Technical Sheet
Description
BE-M is a range of floor standing fast charging station in DC power, with 60 - 90 - 120 - 150 - 180 kW powers.
Made of sturdy painted steel sheet, the BE-M Charging Stations are equipped, depending on the versions, with two cables with CCS2 and/or CHAdeMO connectors and a cable equipped with a Type 2 connector for AC AC charging.
The user interface is guaranteed by a display with a integrated light sensor.
Available with access limited to a authorized user, BE-M charging stations, with Ethernet-WiFi-2/3/4G connectivity, can be managed via Scame’s proprietary management system or can be connected to an external E-mobility Service Provider via OCPP standard communication protocol.
Technical Characteristics
- Voltage rating : 230/400V ac
- Current rating : from 92A ac to 340A ac
- Frequency : 50-60Hz
- Distribution system : 3P+N+PE
- Output connectors 1/2/3 : CCS2 / CHAdeMO / Type 2
- Voltage outputs 1/2/3 : 150-500 Vdc / 150-920 Vdc / 400 Vac
- Current outputs 1/2/3 : max 125A dc / max 150A dc / max 200A dc / max 63A ac
- Efficiency : 94%
- EMC Class : A
- Ingress protection rating : IP54
- Operationg temperature : -25°C +50°C
- Storage temperature : -30°C + 60°C
- Ambient temperature max: (Ta +50°C)
- Altitude: 2000 m max
- Humidity (non condesing) : da 5% a 95%
- Material : Varnished metal
- Glow wire test : -
- IK degree at 20°C : IK10
- Colour : White
- Mounting : Floot standing
- Saline solution : Resistant
- UV Rays : Resistente
- Dimensions (WxDxH) 735x640x1866 mm
- Weight (approx.) from 330 to 430 kg
Main functionalities and elements
- TFT 7" color touchless display
- RFID reader
- network interface Ethernet, GSM/3G/4G
- emergency stop button
- charging mode 4 CCS2 / CHAdeMO / mode 3 with PWM circuit pilot (simultaneous o non simultaneous)
- identification of authorized user
- interfacing with OCPP 1.6J protocol
- predisposition for network connection
Reference Standards
- IEC/EN 61851-1 (Electric vehicle conductive charging system. Part 1: General requirement.)
- IEC/EN 61439-7 (Low-voltage switchgear and control gear assemblies. Part 7: Assemblies for e.v. charging stations.)
