FLOOR STANDING CHARGING STATIONS FOR ELECTRIC BICYCLE
CA[E-BIKE]

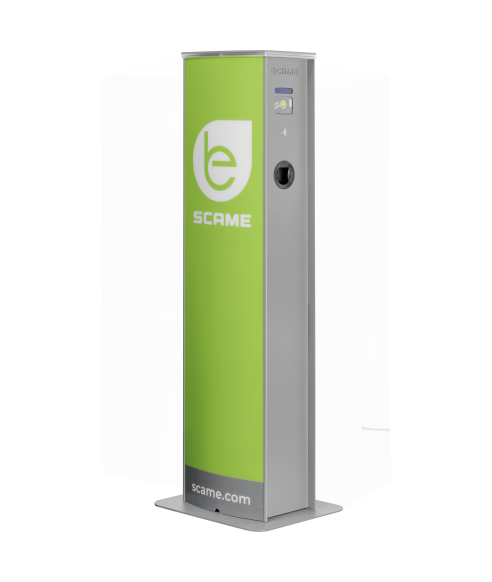

CA [E-BIKE] is a range of charging pillars for electric bikes, made of thermoplastic material and characterized by high resistance to UV Rays and an high degree of protection from dust and water.
They are equipped with a maximum of 4 domestic standard socket outlets and removable plexiglass panel that can be customized graphically wiht the logo of the customer.
Customizable panel
Safety & Reliability
Up to 4 charging socket outlets

CA E-Bike Versions

VERSIONS
CA E-Bike Versions
CA E-Bike Stationt SOLO Version
SOLO
STATIONS FOR STANDALONE APPLICATIONS WITH FREE ACCESS

A "plug&play" charging experience. Authentication free charging sessions are run in total safety.


OPERATING MODE
  • FREE
0
CA E-BIKE STATIONS
SOLO Version

STATIONS FOR STANDALONE APPLICATIONS WITH FREE ACCESS

OPERATING MODE

  • FREE | FREE mode charging stations are the ideal choice for installation in environments that do not require controlled access as use is limited to a few people...read more
The CA e-bike stations offer a "plug & play" charging experience without any other functionality other than the free supply of energy in complete safety... Read More +
Go to the product sheets of the CA stations SOLO version on the Scame.com website
BUSINESS
STATIONS FOR STANDALONE OR MULTI-STATION APPLICATIONS, AS A SATELLITE

In addition to the possibility of operating in a standalone way, either with or without access restriction, a BUSINESS charging station can operate as a Satellite of a Master station.

A Master station defines the rules that regulate the access to the group of stations. That is done via Scame’s Management System or an OCPP backend to which the Master is connected to.


OPERATING MODE
  • FREE
  • PERSONAL
  • WEB/NET [Satellite]
FUNCIONALITIES
  • Management System [Satellite]
  • Load Balancing [Satellite]
1
CA E-BIKE STATIONS
BUSINESS Version

STATIONS FOR STANDALONE OR MULTI-STATION APPLICATIONS, AS A SATELLITE

OPERATING MODE

  • FREE | FREE mode charging stations are the ideal choice for installation in environments that do not require controlled access as use is limited to a few people...read more
  • PERSONAL | PERSONAL mode charging stations are suitable for installation in all places requiring controlled access as use is not limited exclusively to vehicle owners... read more
  • WEB/NET [Satellite] | WEB/NET mode chargin stations are the definitive solution in all those cases in which the system must be monitored and managed remotely. The access to recharging can be with or without authorization...read more

FUNCTIONALITIES

  • Management System [Satellite] | Scame's charging stations can be monitored and managed remotely via the proprietary Management System. The software does not require subscriptions and manages from 1 to 16 charging points...read more
  • Load Balancing [Satellite] | The Scame Load Balancing feature proves to be essential when there are multiple charging points, but the system is not able to power them all simultaneously...read more
The CA BUSINESS E-Bike station add to the possibility of operating independently, with free or controlled access, a Business station can be inserted as a Satellite in the orbit of a Master station... Read More +
Go to the product sheets of the CA E-Bike station BUSINESS version on the Scame.com website
PRO
STATIONS FOR MULTI-STATION APPLICATIONS, REGULATED ACCESS VIA SCAME MANAGEMENT SYSTEM OR OCPP PLATFORM

The ultimate expression of pre-prepared charging to operate as Masters in a Master/Satellite system architecture.

Access to a charging session can be restricted, or not, according to the rules defined in the Scame Management System or by the OCPP platform to which the Master station is connected to.


OPERATING MODE
  • WEB/NET [Master]
FUNCIONALITIES
  • Management System [Master]
  • Load Balancing [Master]
  • Management of up to 16 charging points
  • OCPP 1.6JSON
2
CA E-BIKE STATIONS
PRO Version

STATIONS FOR MULTI-STATION APPLICATIONS, REGULATED ACCESS VIA SCAME MANAGEMENT SYSTEM OR OCPP PLATFORM

OPERATING MODE

  • WEB/NET [Master] | WEB/NET mode chargin stations are the definitive solution in all those cases in which the system must be monitored and managed remotely. The access to recharging can be with or without authorization...read more

FUNCTIONALITIES

  • Management System [Master] | Scame's charging stations can be monitored and managed remotely via the proprietary Management System. The software does not require subscriptions and manages from 1 to 16 charging points...read more
  • Load Balancing [Master] | The Scame Load Balancing feature proves to be essential when there are multiple charging points, but the system is not able to power them all simultaneously...read more
  • Management of up to 16 charging points
  • OCPP 1.6JSON
The CA PRO E-Bike Station is the ultimate expression of charging designed to work with Master in a Master/Satellite architecture... Read more +
Go to the product sheets of the CA E-Bike Station PRO version on the Scame.com website
plus
Why choose
Scame e-Bike
charging solutions
Flexibility
Solutions to meet any need.
Advanced Technology
High quality and reliable products, solutions and components.
Customer Support
Telephone and direct assistance by qualified personnel.

CA [e-Bike]
​​​​​​​Functionalities

--green-3

MANAGEMENT SYSTEM

Scame charging stations can be monitored and managed remotely, directly through the Scame Management System (MS) or connected to an external e-mobility Service Provider.
In the first option, the proprietary software is installed in WEB/NET charging stations, can be used freely and allows the management of up to 16 charging points in a Master/Satellite architecture.
The MS Scame must be configured in a local network, does not require additional software and can be managed directly by an administrator who can access the Management System with his credentials, connecting to a specific IP address.
In the second, the Scame MS allows you to connect the Master stations to an external e-mobility Service Provider (EMSP) that will manage them directly, enabling them to provide additional features such as billing for reloads and booking stations.

Technical Sheet | CA[E-BIKE]
